Descriptions

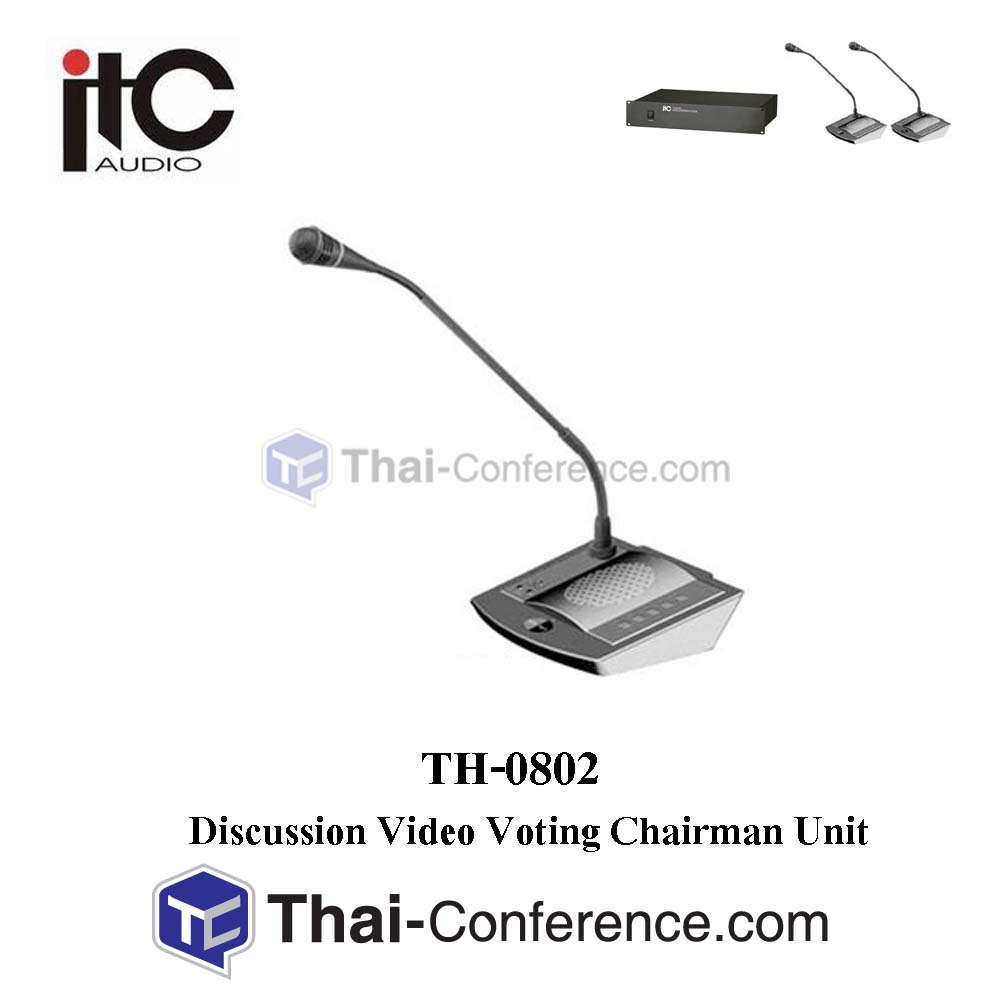

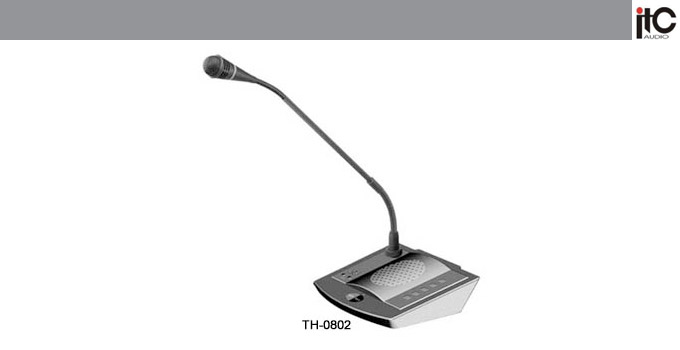

TH-0802 Discussion Video Voting Chairman Unit
Features
- Latest digital design.
- With microphone, speaking button and indicator lamp that can show and control the state of speech.
- Single projection; With Anti-gas sonic boom and wind shield
- With president priority key; the system sound can be prompted to attract attendances’ attention; can be set to terminate for permanent or suspend microphone status of all the speakers.
- The chairman unit can be placed in any position in loop.
- The chairman unit is unrestricted by the limiting function.
- With under-wound capacitive microphone pole and speak halo instructions.
- High sensitivity microphone.
- The power for the delegate units is supplied by the master controller at 24 safe voltage.
- T-shaped 8-core line for unit connection.
- Two groups of 3.5mm stereo sound output socket; can be used as record and earphone connection.
- Built-in hi-fi speaker; volume control ( the speak automatically mute when the microphone be turned on).
- With voting,electing,discussing functions.
- With automatic video-tracking function.
- With a microphone unit connecting cable.
- In accordance with Enternational Electrical Equipment Certification standards (IEC 60914) and the International Safety Standard UL or CE certification.
Specifications
|
Model |
TH-0802/TH-0802A |
|
Frequency Response |
50-20KHz |
|
Sensitivity |
-44dB±2dB |
|
Reference sound-receiving distance |
20-120cm |
|
Tube length |
420mm |
|
Dimension of the appearance |
205×150×55mm |
|
Net Weight |
0.9Kg |
|
Others |
32 e-volume digital adjusting display |
