• Up to 31 interpretation channels
• Two outgoing channels(A + B)
• Four relay languages
• Multiple interlock modes
• For use with eitherheadset or gooseneck microphone
• ‘Beep’ mode for blind interpreters
• Large LCD display with back light

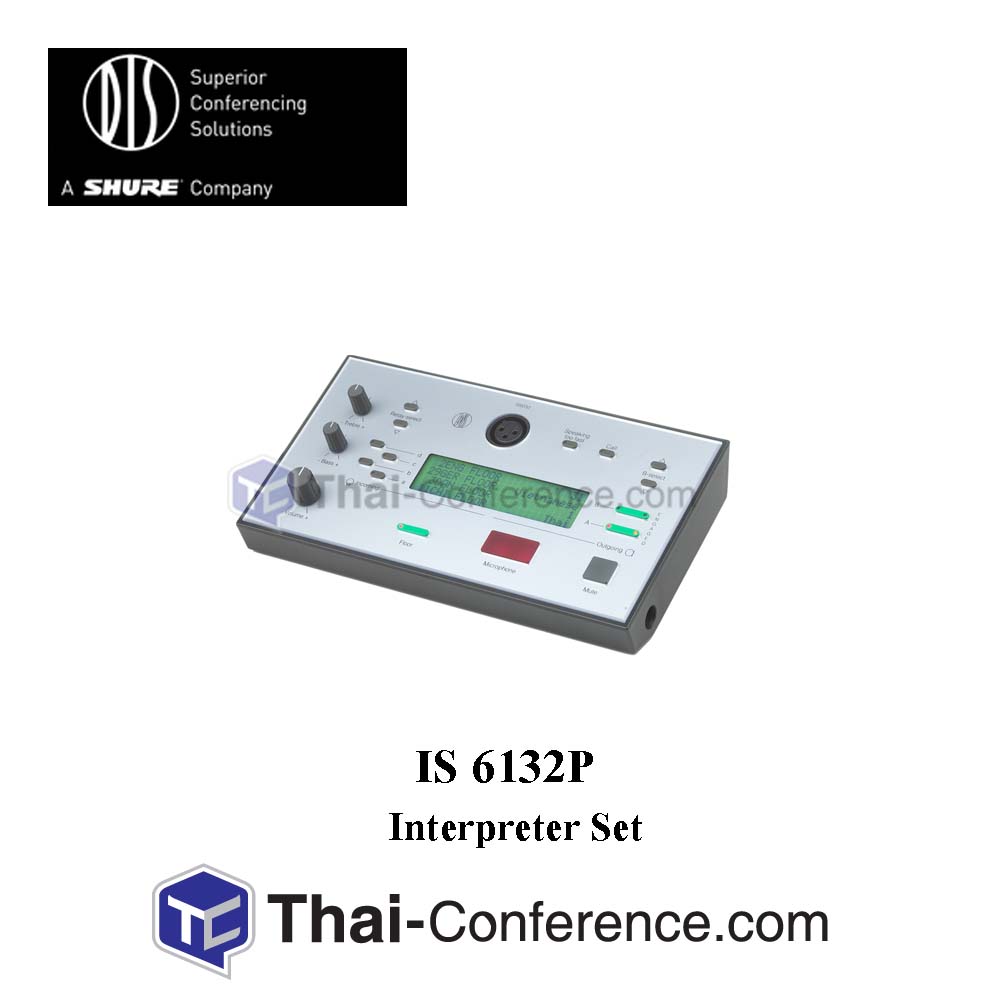

The IS 6132P Interpreter Set is an all digital compact multi channel unit for simultaneous interpretation. It is designed to provide all the facilities needed by an interpreter.

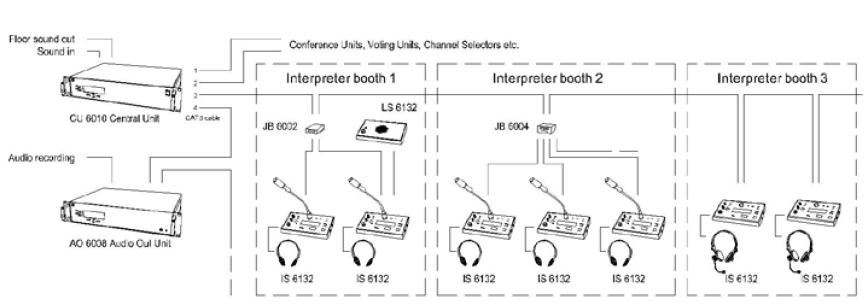

The IS 6132P Interpreter Set is used with a CU 6010 Central Unit to form a digital simultaneous interpretation system of up to 31+1 languages.
The unique digital technology used provides excellent audio performance of consistently high quality. Background noise, distortion and crosstalk is virtually eliminated. The digital technique offers equal listening level on all channels irrespective of the individual interpreter’s speech level.
Each interpreter will have one IS 6132P for individual use – optional with an LS 6132P Loudspeaker connected. Any required number of the IS 6132P - with or withoutLS 6132P - connects to DCS-LAN - the all digital communication bus running Cat.5 cables.
A large backlit display is provided for easy identification of the pre-selected and the outgoing languages. The relay quality of eachpre-selected language is shown indicating if the language is original, a direct, double or more relay interpretation.
The IS 6132P features:
• Illuminated microphone on/off button
• Large "Mute/Cough" buttonThe microphone is temporarily mutedwhen pressing the Mute/Cough button
• Two outgoing channels (A + B). The B output is selectable from all available channels/languages
• Free or locked toggling between A and B outputs Free toggling between A and B outputs without deactivating the microphone maybe enabled for easy operation in bilingual applications.
• B channel mode is selectable for
- All channels
- One channel
- No channels (inactive)
• Four relay languages + Floor, directly accessible from dedicated buttons
• Free pre-selection of relay languages
• Language names are assigned to all channels.More than 70 standard language names are available.
• The number of channels can be limited tomatch the number of languages required(0 to 31)
• Multiple interlocking modes:
- Complete lock
- No lock
- Interlock:
A interrupt A: An interpreter turning on his microphone on an A-channel will interrupt another interpreter using his A channel
A interrupt B: An interpreter turning on his microphone on an A-channel will interrupt another interpreter using his B channel, but will not interrupt an interpreter using his Achannel.
A interrupt A+B: An interpreter turning on his microphone on an A-channel will interrupt another interpreter using his A or B channel.
•‘Beep’ mode for use by blind interpreters.One ‘beep’ indicates the microphone is‘on’. Two ‘beeps’ indicates the microphoneis ‘off’.
• ‘Auto Floor’ mode. When Auto Floor is disabled a language channel with no interpretation will not have the Floor sound.This mode is very useful in broadcast applications.
• Volume & separate tone controls
• "Speaking too fast" button
• 4 x 24 LCD display with backlight
• Light indication in buttons
• XLR socket for gooseneck microphone
• DIN socket for connection of headset
• Direct connection to the DCS-LAN
• Firmware upgrade via DCS-LAN
• Remotely controllable from the CU 6010or a PC with SW 6000
The A outgoing channel is set up byusing the built-in set-up menu or from SW 6000.Any set-up may easily be changed at therequest of the interpreter either by the operator/technician or 'live' using the SW6000.The firmware of all IS 6132P in a system mayeasily be upgraded e.g. with new functionality via the DCS-LAN from a PC connectedto the CU 6010 Central Unit.
Technical Specifications
Number of incoming channels:
Up to 32 (31 + floor)
Number of outgoing channels:
32 (selection of all available languages)
DCS-LAN Connections:
DCS-LAN: 2 x RJ45 - 8pin input/outputProprietary high speed all digitalaudio channel, data and power bus
Cable: Shielded AWG 24 Cat. 5
Microphone:
Impedance: 2 kOhms
Connection:1. XLR3S connector for DIS Electretcardoid series GM 442xmicrophone. w.light.
2. Din8 socket for use of a varietyof different headsets.+ 5 Volts available for electrettype microphone.
Loudspeaker – LS 6132P:
D9S socket
Headphone Output:
Load: >30 OhmsLevel: 1,5 Volt
Frequency Range: 20 Hz-15 kHz
Distortion: < 0,01 %
Signal to Noise Ratio: > 96 dBA
Crosstalk Attenuation: > 96 dB
Sockets: 2 x 3,5 mm +1 x ¼”, stereo jack
System Performance:
Max number of IS 6132 in one booth: 32
Max number of IS 6132P 150
Max number of booths 128
Power Requirements:
Supplied from CU 6010
Temperature Range:
5-40 deg. Celsius
Dimensions (W x H x D):
235 x 73 x 115 mm
Weight: 1,0 kg
without gooseneck microphone
Power Consumption:
IS 6132P 2.0 W (typical)
LS 6132P 0.5 W (typical)
Configuration:
