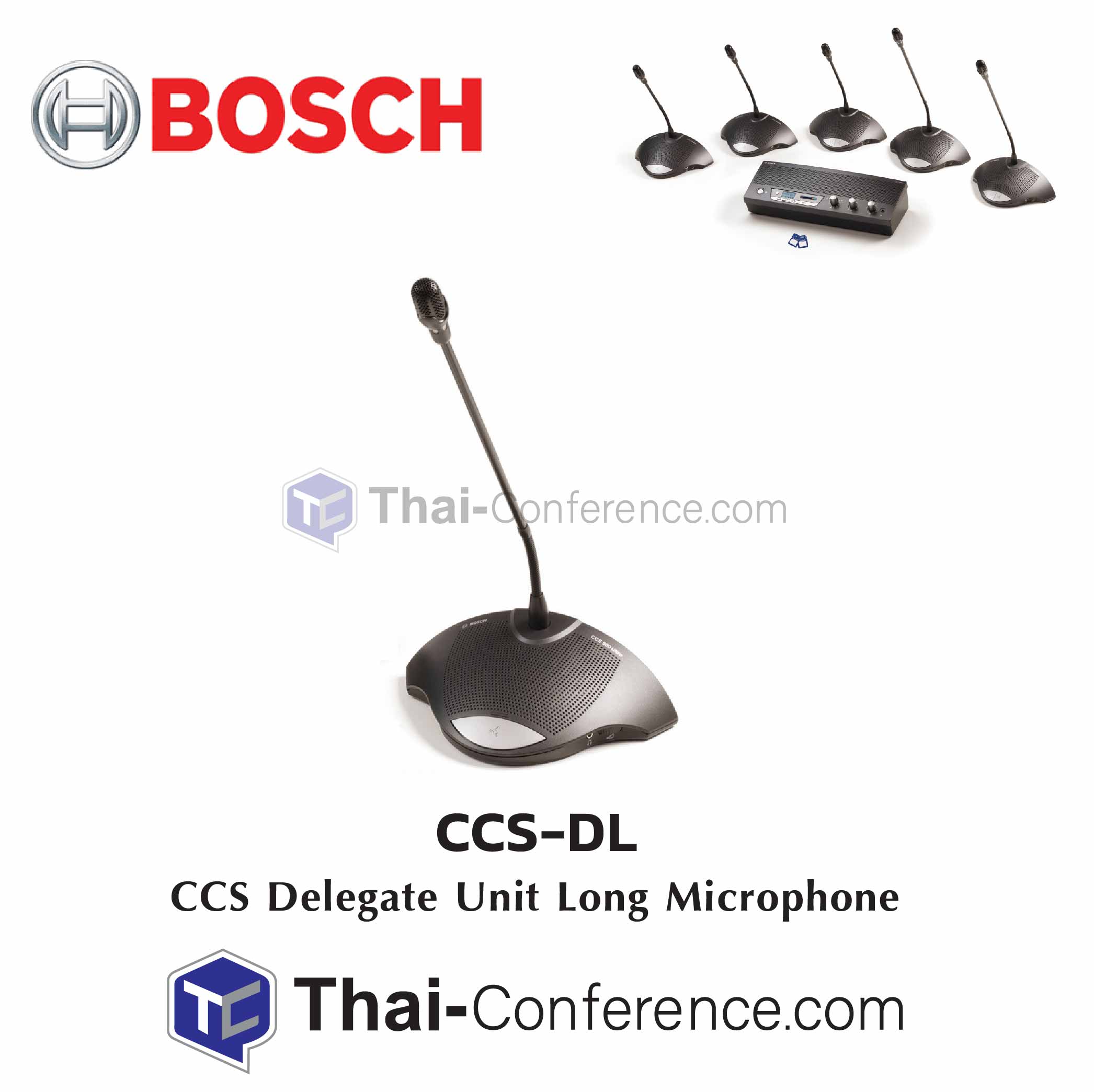

The Bosch CCS-D Delegate Unit is intended for use with the Bosch CCS 900 Conference System. Delegate Unit features a built-in speaker and an adjustable gooseneck microphone. It Possible-To-Speak LED illuminates to indicate when it is possible to activate the microphone. The CCS-D Delegate Unit loudspeaker mutes automatically while in use, features a red LED ring to indicate power and a headphone output with dedicated level control.
-Unique, patent pending Possible‐To‐Speak indicator
-Compact, attractive design
-Built-in volume control for headphones
-Microphone with flexible stem and light ring
-Two headphone sockets
Technical specifications
Mechanical
Dimensions unit without
microphone (H x W x D)
71 x 220 x 140 mm (2.8 x 8.7 x 5.5 in)
Height with microphone
in horizontal position
134 mm (5.3 in)
Length of microphone
from mounting surface
CCS‑DL
488 mm (19.2 in)
Weight approx. 1 kg (2.2 lb)
Mounting tabletop (portable or fixed)
Material (top) polymer
Material (base) painted metal
Color (top) charcoal (PH10736)
Color (base) charcoal (PH10736)
Ordering information
CCS‑DL CCS Delegate Unit Long Microphone
microphone stem length 488 mm (19.2 inch)
Order number CCS-DL
