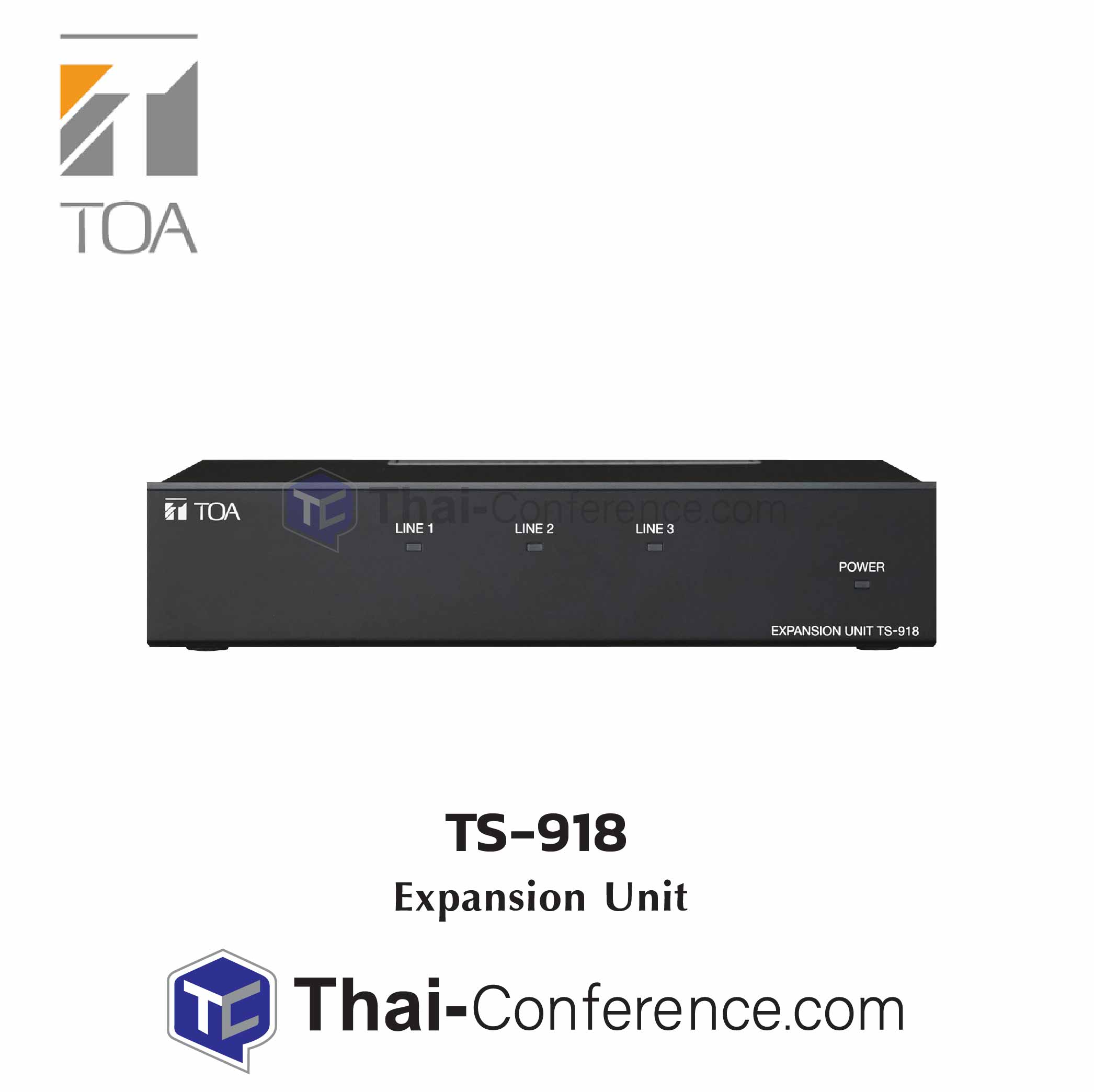

The TS-918 is an interface necessary for incorporating the Wired conference unit(s) in the conference system. It
is connected to the TS-910 Central unit with a coaxial cable and to the TS-919B1 or TS-919B4 Bridge unit with a
Category 5 cable. With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard equipment
rack (1 unit size).
Specifications
Power source 100 - 240 V AC, 50 / 60 Hz (use of the supplied AC Adapter)
Power consumption 74.4W
Current consumption 3,1 A
Connection Central unit connection terminal: BNC jack; Bridge unit connection terminal: RJ45 connector
Weight 1,6 kg
Dimensions (W x H x D) 210 x 44 x 296,5 mm
Dimensions (ø x D) x 296,5 mm
Gross weight 2,81 kg
Finish Aluminium, 30% gloss, melamine-baked paint, black
